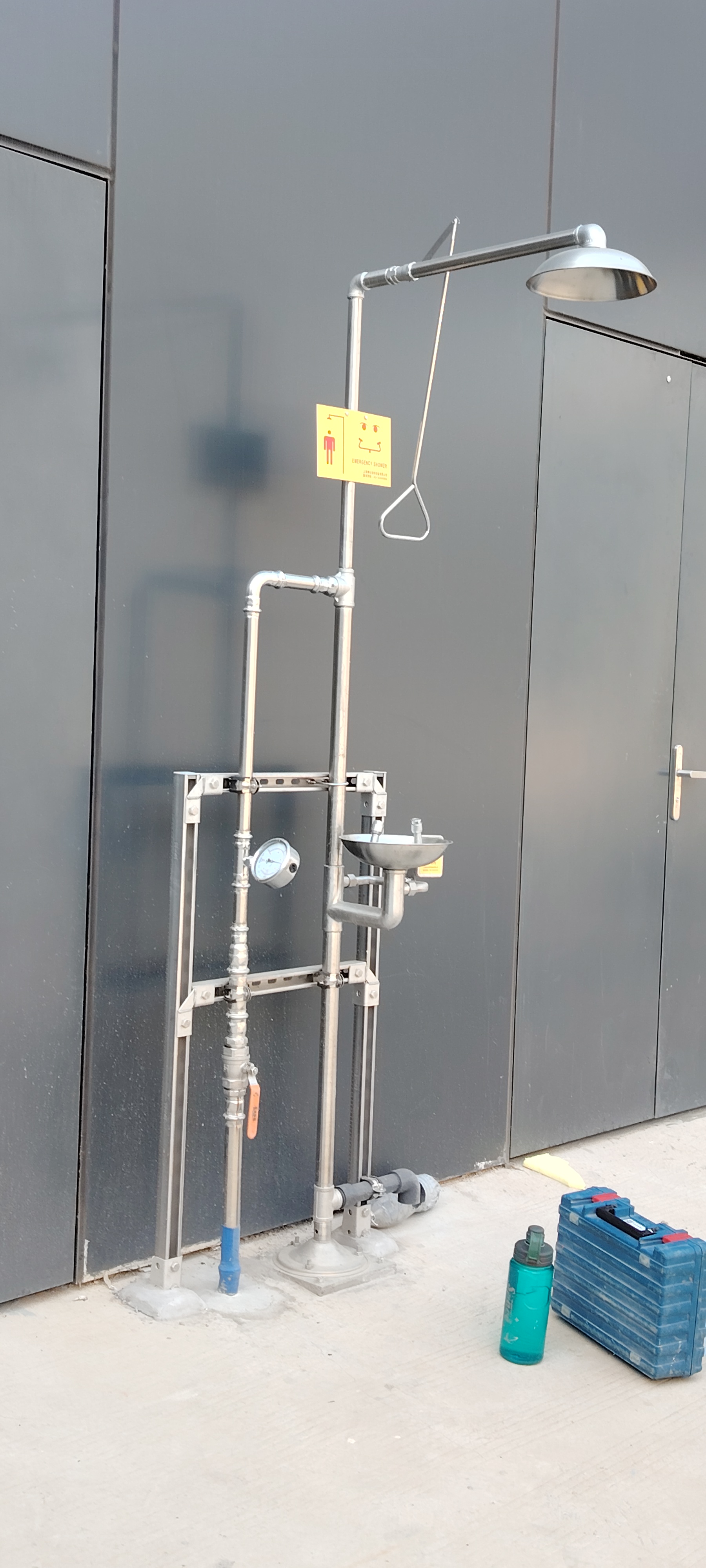

Floor-Mounted Compound Emergency Shower and Eyewash in 316 Stainless Steel
Product Summary
This floor-mounted compound emergency shower and eyewash station, model BH30-1316, is engineered for rapid response to chemical splashes. Constructed from 316 stainless steel for superior corrosion resistance, it provides both full-body shower and eye/face wash in one integrated unit. The system activates within 1 second, ensuring immediate decontamination in critical situations.
Key Features
Rapid Activation: Start speed within 1 second, ensuring immediate first aid response.
High Flow Rates: Shower flow 120-180 L/min, eyewash flow ≥1.5 L/min for effective rinsing.
Corrosion-Resistant Material: All wetted parts in 316 stainless steel, ideal for aggressive chemical environments.
ANSI & CE Certified: Meets ANSI Z358.1-2014 and CE en15154-1:2006 standards for safety equipment.
User-Friendly Operation: Push handle activation and adjustable cow-horn bend for personalized eyewash flow.
Integrated System: Combines shower and eyewash in one unit, saving space and simplifying installation.
Technical Specifications
Model
BH30-1316
Material
316 Stainless Steel
Water Inlet/Outlet
DN32
Eyewash Flow Rate
≥1.5 L/min
Shower Flow Rate
120-180 L/min
Installation Type
Floor-mounted
Activation
Push handle
Height
2480 mm
Shower Head Height
2100 mm
Water Inlet Height
1600 mm
Eyewash Height
1050 mm
Drainage Height
133 mm
Sprinkler Spacing
101.6 mm
Water Pressure
0.25-0.4 MPa
Start Speed
≤1 sec
Sprinkler Material
PP + 304 filter
Ball Valve
Two-piece ball valve
Cow-horn Bend
Adjustable flow
Anti-dust Cover
Fixed soft rubber
Indicator
Luminous aluminum alloy
Water Discharge Range
508 mm at 1524 mm from surface
Warranty
One year
Models and Options
This model BH30-1316 is available as standard. Options may include freeze protection, explosion-proof configurations, and different valve types upon request.
Materials and Structure
Constructed from 316 stainless steel for maximum corrosion resistance in harsh chemical environments. The unit features a two-piece ball valve, PP+304 filter sprinkler, adjustable cow-horn bend, and a luminous aluminum alloy indicator for high visibility.
Applications
Ideal for chemical manufacturing plants, pharmaceutical facilities, laboratories, petrochemical plants, battery manufacturing, university research labs, metalworking industries, agriculture and pesticide handling, and food processing units.
Customization
Customizations such as explosion-proof enclosures, freeze protection, and special markings are available upon request. Contact us to discuss your specific EHS requirements.
Frequently Asked Questions
Q1: What is the minimum order quantity? MOQ is 1 unit.
Q2: What delivery methods are available? We ship via FOB, and pre-shipment testing is available.
Q3: Does this product meet ANSI and CE standards? Yes, it is certified to ANSI Z358.1-2014 and CE en15154-1:2006.
Q4: Can the eyewash flow be adjusted? Yes, the cow-horn bend is adjustable to regulate flow.
Q5: What is the warranty period? We offer a one-year warranty.
Q6: How quickly does the water start? The activation is within 1 second.
Q7: Is installation easy? The unit is floor-mounted and includes standard connections; installation guide is provided.
Q8: Can you provide custom color or logo? Yes, customization is possible; please contact us for details.
Inquiry Information
For more details, please contact us at sales@shanghai-bohua.com or visit our website www.eyewashcn.com. We are glad to provide technical support and quotations.
